Rack / Lunchbox

PP Rack

Polypropylene Resin

Pioneer Kasen has developed the ‘lightest and highly heat-resistant PP resin rack (heat-resistant temperature of 120°C)’ with outstanding storage capacity.
(Design registration No. 1168469) The heat-resistant temperature is 120°C, and the load resistance is 12kg (PPE96).
It is highly impact resistant and less prone to bending, making it a very durable rack.
Additionally, it has a low water absorption rate, excellent heat resistance, and is resistant to acids and alkalis, making it ideal for hot air sterilization and disinfection storage (set temperature 85-90°C).
This product is also recyclable.

We can print school names or class names on the sides, so please feel free to contact us for inquiries.

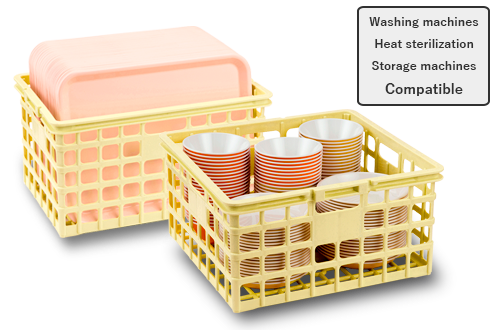

[Example of storage for Animato Rack PPE95-01]
Storage of 40 bowls
Storage of 40 square divided plates

PP95 allows for stacking with contents inside,
and it can be sterilized as is.

PP93

PP93-01 Yellow
External Size : 339X184X192H
Effective Size : 318X163X181.5H
Weight : 590g

PP93-02 Pink
External Size : 339X184X192H
Effective Size : 318X163X181.5H
Weight : 590g

PP93-03 Green
External Size : 339X184X192H
Effective Size : 318X163X181.5H
Weight : 590g

PP93-04 Blue
External Size : 339X184X192H
Effective Size : 318X163X181.5H
Weight : 590g

PP94

PP94-01 Yellow
External Size : 369X218X192H
Effective Size : 347X197X181H
Weight : 660g

PP94-02 Pink
External Size : 369X218X192H
Effective Size : 347X197X181H
Weight : 660g

PP94-03 Green
External Size : 369X218X192H
Effective Size : 347X197X181H
Weight : 660g

PP94-04 Blue
External Size : 369X218X192H
Effective Size : 347X197X181H
Weight : 660g

PP95・PP95h (With handle)

Click the icon to expand to other sizes

PP95-01 Yellow
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,040g

PP95h-01 Yellow (With handle)
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,140g

PP95-02 Pink
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,040g

PP95h-02 Pink (With handle)
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,140g

PP95-03 Green
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,040g

PP95h-03 Green (With handle)
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,140g

PP95-04 Blue
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,040g

PP95h-04 Blue (With handle)
External Size : 389X368X195H
Effective Size : 352X330X185.6H
Weight : 1,140g

PP96・PP96h (With handle)

PP96-01 Yellow
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,040g

PP96h-01 Yellow (With handle)
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,140g

PP96-02 Pink
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,040g

PP96h-02 Pink (With handle)
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,140g

PP96-03 Green
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,040g

PP96h-03 Green (With handle)
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,140g

PP96-04 Blue
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,040g

PP96h-04 Blue (With handle)
External Size : 420X279X221H
Effective Size : 382X341X211H
Weight : 1,140g

PP97

PP97-01 Yellow
External Size : 425X245X201H
Effective Size : 393.5X214X191.5H
Weight : 910g

PP97-02 Pink
External Size : 425X245X201H
Effective Size : 393.5X214X191.5H
Weight : 910g

PP97-03 Green
External Size : 425X245X201H
Effective Size : 393.5X214X191.5H
Weight : 910g

PP97-04 Blue
External Size : 425X245X201H
Effective Size : 393.5X214X191.5H
Weight : 910g

PP90

PP90-01 Yellow
External Size : 385X367X224H
Upper inside size : 363X344.5X210H
Lower inside size : 328.5X310.5X210H
Weight : 1,040g

PP90-02 Pink
External Size : 385X367X224H
Upper inside size : 363X344.5X210H
Lower inside size : 328.5X310.5X210H
Weight : 1,040g

PP90-03 Green
External Size : 385X367X224H
Upper inside size : 363X344.5X210H
Lower inside size : 328.5X310.5X210H
Weight : 1,040g

PP90-04 Blue
External Size : 385X367X224H
Upper inside size : 363X344.5X210H
Lower inside size : 328.5X310.5X210H
Weight : 1,040g

Porcelain Rack / Porcelain Middle Divider / Handle

PP94P-02 Porcelain Rack (With middle divider)
Effective Size : 186X166X181HX2

P94-501 Middle Divider
Size : 191X15 （3.5）X168H
Weight : 63g

P93-501 Middle Divider
Size : 157X15 （3.5）X173H
Weight : 55g

N-01 Handle
Grip diameter : 20mm
Material : Stainless steel
※When mounted, the external dimensions of the rack will increase by 14mm

N-02 Handle
Grip diameter : 13mm
Material : Stainless steel
※When mounted, the external dimensions of the rack remain unchanged

Lunch Box

The surface has a hardness of 3H, providing resistance to impacts, making it difficult for scratches and dirt to adhere. Additionally, it is resistant to acids and alkalis, maintaining dimensional accuracy even after years of use.
Moreover, it is suitable for use in microwave ovens and steam convection ovens, and can be used for long periods in reheating cookers.
